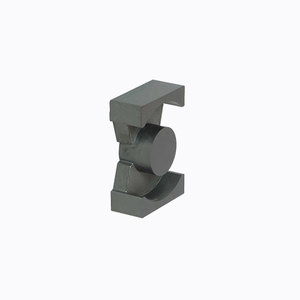

PQ型磁芯
型号 Type | 尺寸Dimensions(mm) | 磁芯参数Core Parameters | Wt | 下载 Download | |||||||
| A | B | C | D | E | F | Le | Ae | Ve | g/prs | ||
| PQ20/14 | 21.0-0.9 | 18.0±0.4 | 8.8±0.2 | 14.0±0.4 | 4.35±0.15 | 7.0±0.1 | 34.4 | 61 | 2095 | 12 | |
| PQ20/16 | 21.0-0.9 | 18.0±0.4 | 8.8±0.2 | 14.0±0.4 | 5.35±0.15 | 8.3±0.1 | 37.4 | 62 | 2310 | 13.13 | |
| PQ20/18 | 21.0-0.9 | 18.0±0.4 | 8.8±0.2 | 14.0±0.4 | 6.35±0.15 | 9.3±0.1 | 42.4 | 61 | 2590 | 14.34 | |
| PQ20/20 | 21.0-0.9 | 18.0±0.4 | 8.8±0.2 | 14.0±0.4 | 7.15±0.15 | 10.1±0.1 | 45.4 | 62 | 2790 | 15.4 | |
| PQ21/20 | 20.9+0.5/-0.4 | 18.4±0.4 | 8.6±0.2 | 14.0±0.4 | 7.6min | 10.5min | 47.2 | 64.3 | 3030 | 15.8 | |
| PQ26/18 | 26.5±0.45 | 22.5±0.45 | 12.0±0.2 | 19.0±0.45 | 4.8±0.2 | 8.9±0.25 | 40.7 | 119 | 4790 | 27.64 | |
| PQ26/20 | 26.5±0.45 | 22.5±0.45 | 12.0±0.2 | 19.0±0.45 | 6.2±0.2 | 10.45±0.2 | 46.3 | 119 | 5490 | 30.88 | |
| PQ26/25 | 26.5±0.45 | 22.5±0.45 | 12.0±0.2 | 19.0±0.45 | 8.1±0.2 | 12.5+0.25 | 55.5 | 118 | 6530 | 35 | |
| PQ32/18 | 32.05±0.55 | 27.5±0.5 | 13.45±0.25 | 22.0±0.5 | 5.25min | 9.75min | 52.8 | 164 | 8640 | 40 | |
| PQ32/20 | 32.05±0.55 | 27.5±0.5 | 13.45±0.25 | 22.0±0.5 | 5.75±0.15 | 10.4-0.25 | 55.5 | 170 | 9420 | 42 | |
| PQ32/25 | 32.05±0.55 | 27.5±0.5 | 13.45±0.25 | 22.0±0.5 | 8.05±0.2 | 12.55±0.15 | 65 | 159 | 10300 | 48 | |
| PQ32/30 | 32.05±0.55 | 27.5±0.5 | 13.45±0.25 | 22.0±0.5 | 10.65±0.15 | 15.17±0.15 | 75.3 | 165 | 12400 | 55 | |
| PQ35/30 | 35.1±0.6 | 32.0±0.5 | 14.35±0.25 | 26.0±0.5 | 10.12±0.2 | 15.0±0.15 | 70.1 | 168 | 11769 | 61 | |
| PQ35/31A | 35.1±0.6 | 29.5±0.6 | 18.9±0.25 | 29.0±0.5 | 9.25±0.2 | 15.8±0.15 | 65.9 | 280 | 18479 | 102 | |
| PQ35/35 | 35.1±0.6 | 32.0±0.5 | 14.35±0.25 | 26.0±0.5 | 12.5±0.2 | 17.4±0.15 | 79.7 | 168 | 13402 | 72 | |
| PQ36/31A | 35.9±0.6 | 30.3±0.6 | 18.9±0.25 | 29.0±0.6 | 9.25±0.2 | 15.8±0.15 | 66.1 | 280 | 18523 | 106 | |
| PQ40/40 | 40.5±0.9 | 37.0±0.6 | 14.9±0.3 | 28.0±0.6 | 14.75±0.3 | 19.9±0.3 | 102 | 201 | 20500 | 95 | |
| PQ50/50 | 50.0±1.0 | 44.0±0.7 | 20.0±0.35 | 32.0±0.65 | 18.1±0.3 | 25.0±0.3 | 113 | 328 | 37200 | 195 | |
| PQ78/39/42 | 78.5±1.5 | 69.0min | 25.5±0.5 | 42.0±0.8 | 12.9±0.5 | 19.7±0.3 | 119 | 480 | 56900 | 300 | |
| PQ107/87/70 | 107.0±2.0 | 93.7min | 41.0±1.0 | 70.0±1.5 | 28.0±0.75 | 43.5±0.75 | 201.4 | 1458 | 293743 | 1520 | |
| PQ107/275 | 107.0±2.0 | 93.7min | 41.0±1.0 | 70.0±1.5 | 122.38±0.38 | 137.5±0.5 | 577 | 1408 | 631617 | 2995 | |
|
|
