ETD型磁芯

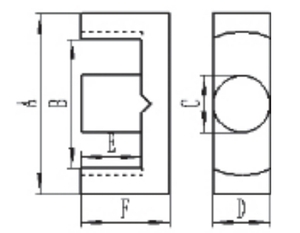

型号 Type | 尺寸Dimensions(mm) | 磁芯参数Core Parameters | Wt | 下载 Download | |||||||
| A | B | C | D | E | F | Le | Ae | Ve | g/pcs | ||
| ETD29/30 | 29.8±0.8 | 22.7±0.7 | 9.5±0.3 | 9.5±0.3 | 11.0±0.3 | 15.8±0.2 | 70.7 | 76.3 | 5396.5 | 14 | |
| ETD34/35 | 35.0-1.6 | 25.6+1.4 | 11.1-0.6 | 11.1-0.6 | 11.8+0.6 | 17.3±0.2 | 79.0 | 97.0 | 7665.2 | 19.73 | |
| ETD49/54 | 48.7±1.1 | 37.0±0.9 | 16.4±0.4 | 16.4±0.5 | 18.1±0.4 | 24.7±0.2 | 114 | 211 | 24000 | 61 | |
| ETD59/62 | 59.8±1.3 | 44.7±1.1 | 21.65±0.45 | 21.65±0.45 | 22.5±0.4 | 31.0±0.2 | 140.5 | 367.4 | 51634.5 | 133 | |
|
|
